How Chiang Rai Pumps and Canals Prevent Urban Flooding

Heavy monsoon rain can overwhelm Chiang Rai quickly because water runs into low-lying neighborhoods faster than urban drains and waterways can carry it away. When the Kok River rises at the same time, roads, homes, and businesses in the city face an even greater risk of flooding.

The 2024 floods damaged more than 51,000 households in Chiang Rai Municipality, showing why the city needs more than emergency pumping after water has entered homes. Today, pumps and canals work as one connected system, supported by drainage pipes, flood barriers, monitoring teams, heavy equipment, and regular maintenance; Chiang Rai’s large water pumps for flooding help move excess water out of vulnerable areas faster.

The process starts with collection through streets and drainage pipes, then pumps push water into canals, which carry it toward larger waterways and discharge points. The sections ahead explain how each part works together to reduce inner-city flooding.

Key Takeaways

• Chiang Rai reduces urban flooding by collecting runoff through drains, then moving it through canals and discharge points.
• Large pumps help clear low-lying areas when heavy rain exceeds the capacity of gravity-fed drainage.
• Canal maintenance matters because sediment, debris, and narrowed channels restrict water flow.
• Power supply, monitoring, and rapid equipment deployment can determine how quickly pumping stations respond.
• Chiang Rai’s Phase 7 flood defense project supports broader protection, while canal clearing and pumps remain the system’s working core.

How Chiang Rai Municipal Pumps and Canals Prevent Inner-City Flooding

Chiang Rai’s flood-control system is a network, not one single pump station. Rain falls on roads, yards, and neighborhoods, then roadside drains collect the runoff. Pipes carry that water toward canals and discharge points, while pumps help when gravity alone cannot move it quickly enough.

Pumps Give Floodwater a Faster Route Out

Under normal conditions, water flows downhill through drains and pipes by gravity. That process slows in flat or low-lying areas, especially when the Kok River is high and the outlets cannot release water freely. Pumps provide extra force, pulling standing water from streets, communities, and other low points before it remains trapped.

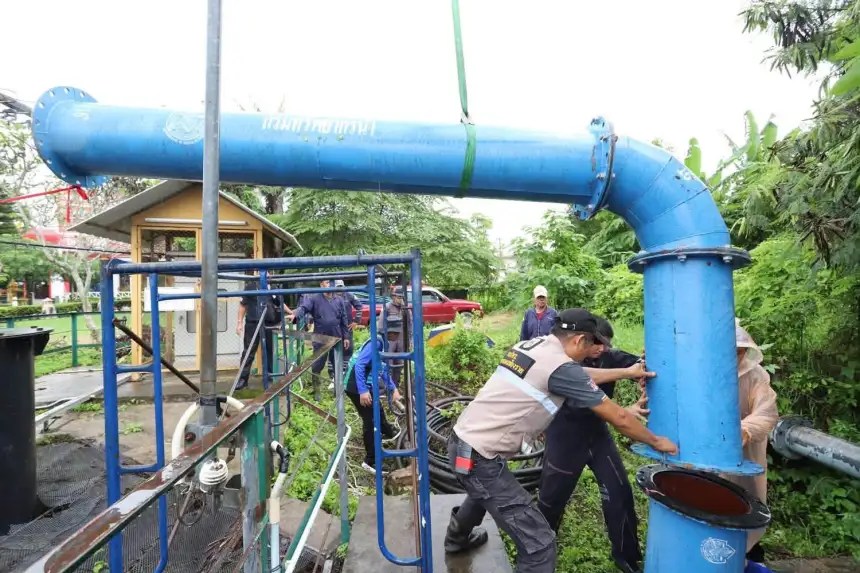

Fixed pumps can protect known flood-prone locations, while mobile units can move wherever rainfall creates a new problem. Chiang Rai has reported deploying high-capacity mobile pumps during flood response. Coverage has also referred to a 14-inch pump, showing the range of equipment used to shift water from drainage lines and saturated areas. These examples describe emergency tools, not a verified citywide pumping capacity.

The city has also checked discharge points, machinery, safety equipment, and monitoring systems before heavy monsoon rainfall. Residents can learn more about these municipal flood defense preparations before severe weather arrives.

Canals Carry Water Beyond the Most Crowded Streets

Smaller drains and pipes gather water from individual streets. Canals then provide a wider route, carrying the combined flow away from crowded urban areas toward larger waterways and discharge points. During regional flood recovery, drainage routes have been cleared with the goal of moving water toward the Mekong River.

That chain only works when each link remains open. Sediment, trash, vegetation, or a narrowed canal can slow the entire system. High river levels create another problem because water at the outlet may have nowhere to go, even when city drains are clear.

Barriers and Monitoring Add Protection When Rain Is Extreme

Water barriers can shield exposed roads and riverfront communities while pumps and canals handle excess runoff. Planned barriers around Rong Suea Ten, Fang Min, Pa Daeng, and Ko Loi add protection, but planned projects should not be treated as completed works.

Meanwhile, officials use river gauges, rainfall reports, warning signs, drainage inspections, and 24-hour monitoring centers to guide decisions. If water rises rapidly, crews can place mobile pumps at priority locations, close dangerous roads, or warn residents before flooding spreads. River-level monitoring guidance has also emphasized round-the-clock local reporting during flood threats.

Fast Facts and Costs: What Is Known About Chiang Rai’s Flood System

Chiang Rai’s flood defenses combine pumps, canals, river monitoring, and cleanup equipment. The available figures show how quickly conditions can change, while a 2024 Chiang Rai flood study links flood severity to heavy rainfall, urban growth, and limited drainage capacity.

Key Measurements and Equipment

These reported details put the system’s scale into context.

The river measurements describe conditions at particular monitoring points and times. They don’t provide a complete picture of every canal, neighborhood, or pump station, but they help explain why officials track water levels before sending more water into a river.

What Chiang Rai’s Flood System Costs

Public reporting reviewed for this article doesn’t provide a complete price list for municipal pumps, canal upgrades, barriers, or related infrastructure. Therefore, no reliable single figure should be presented as the total cost of Chiang Rai’s flood system.

The main expenses fall into several categories:

• Municipalities must purchase or replace pumps, suction trucks, generators, hoses, and discharge pipes.
• Fuel and electricity keep mobile and fixed pumping equipment operating during long storms.
• Staff must monitor gauges, operate machinery, inspect canals, and respond around the clock.
• Pipe replacement and canal clearing remove blockages that reduce drainage capacity.
• Emergency repairs cover damaged roads, barriers, pump parts, canal walls, and electrical systems.

After flooding, Chiang Rai flood cleanup operations can require heavy pumps, mud removal, drain clearing, and road repairs. Those recovery costs are separate from the regular maintenance budget, yet both determine how well the system performs during the next storm.

Step-by-Step: How the City Responds Before, During, and After a Flood

Chiang Rai’s flood response depends on timing. A short, intense downpour can overwhelm a blocked drain before crews reach the street, so preparation begins well before rain arrives.

Before the Rain: Inspect, Clear, and Stage Equipment

1. Chiang Rai City Municipality checks pumps, generators, hoses, safety equipment, and flood-monitoring systems before the rainy season. Crews also inspect drainage channels, culverts, pump intakes, and discharge points for sediment, trash, vegetation, or damage.
2. Disaster prevention officials, district offices, local administrations, and the Irrigation Department compare known flood points with available equipment. Pumps placed near low-lying neighborhoods, bridges, airports, and other trouble spots can start work sooner than units transported across the city.
3. Crews inspect older drainage pipes because cracks, collapsed sections, and narrow passages reduce capacity even when the surface drain looks clear. Chiang Rai also needs plans to upgrade aging pipes, especially where repeated flooding shows that routine cleaning is no longer enough.

During a Storm: Watch Water Levels and Move Water Quickly

4. Officials track rainfall, canal conditions, and river readings, then compare measurements with critical thresholds. For example, the Nam Ing monitoring station in Wiang Subdistrict recorded 7.00 meters during a Thoeng flood response, 0.50 meters below the reported 7.50-meter emergency point.
5. Teams watch low-lying neighborhoods while district officials, police, civil defense volunteers, and local administrations share field reports. When runoff begins collecting, crews move mobile pumps to priority locations and install barriers near exposed roads or communities.
6. A pump works only when its entire route is ready. The intake must reach floodwater, the outlet must lead to a safe canal or river, the power source must support continuous operation, and crews need a passable access route.The Thoeng floodwater pumping response shows how river readings and mobile pumps guide these decisions. Pump operation also depends on coordinated water gates and drainage routes, as outlined in this flood management information plan.
7. Public warnings go out when river levels rise or flooding threatens roads and homes. Residents may be told to move belongings higher, avoid submerged roads, and report emergencies through local disaster channels.

After the Water Drops: Remove Mud Before the Next Downpour

8. Crews inspect roads, neighborhoods, bridges, drains, and pipes after water recedes. They remove fallen debris, check for road damage, and confirm that pumps and discharge channels remain safe.
9. High-pressure suction trucks can remove up to 5,000 liters of mud per suction, or about five tons. Clay-like mud, sand, trash, cracked pipes, and collapsed sections slow the work, clog drains, and reduce capacity for the next storm. Removing that material quickly gives runoff a clear route before another downpour arrives.

Where Inner-City Flooding Is Most Likely to Build Up

Flood risk is rarely equal across a city. In Chiang Rai, water collects fastest where the ground sits slightly lower, runoff meets a raised road, or a drain cannot pass water into the next channel. Local rainfall, upstream river water, blocked drainage, or a combination of these factors can flood the same area.

Low-Lying Neighborhoods Have Less Room for Runoff

A small change in elevation can determine whether water drains away or remains on a street. Rainwater naturally moves toward lower ground, so neighborhoods in shallow depressions receive runoff from surrounding roads and properties. When the Kok River or another receiving waterway is already high, those outlets may drain slowly or push water back toward the city.

That is why streets and homes can remain flooded after rain has stopped elsewhere. Water still has to travel through pipes, roadside drains, canals, and river outlets. If each section falls only slightly, the whole route may move too slowly to clear the lowest blocks.

Reported high-risk locations include 416 Airport, Red Forest Community, Lam Muang San Klang, and Hong Li Bridge. Other vulnerable communities include Rong Suea Ten, Fang Min, Pa Daeng, and Ko Loi. Airport and open-field areas can collect broad sheets of runoff, while nearby homes may sit at the lowest edge of that flow.

Officials have selected some of these points for Chiang Rai’s planned high-capacity pumps, along with proposed barriers. These measures target locations where gravity drainage may not clear water quickly enough.

Bridges, Roads, and Narrow Outlets Can Slow the Whole Network

A bridge crossing, road embankment, narrow pipe, or filled canal can act as a choke point. Water may arrive faster than it can pass beneath the road, so it spreads across nearby lanes, yards, and buildings. Blocked roadside grates create the same problem at the start of the drainage route.

Bridge approaches and underpasses are especially exposed because they often sit below the surrounding road surface. Flood reports have identified areas near Hong Li Bridge, the T.6 Bridge, and Kok River Bridge as locations where water can collect or force traffic closures.

However, each site needs its own assessment. One location may flood after intense local rain, while another may receive upstream water or suffer from a blocked outlet. Targeted pumps, temporary barriers, cleared canals, and open discharge routes allow crews to address the actual choke point instead of relying on one citywide solution. Maintaining open channels also helps protect streets and emergency access, as described in UNESCO’s urban flood guidance.

Local Tips and Common Mistakes to Avoid During Heavy Rain

Household actions cannot replace Chiang Rai’s pumps, canals, and drainage crews. However, a few timely steps can keep runoff moving and give emergency teams safer access to flooded streets. Check Chiang Rai flood alerts before severe weather arrives, then prepare while roads and drains are still passable.

Simple Steps Households Can Take Before a Downpour

Clean roof gutters, downspouts, and grates near your property before heavy rain. Remove leaves, mud, plastic, and other debris, but don’t push the waste into the street drain. Bag it for collection instead. Keep sand, soil, and household items away from drainage openings so water can enter freely.

Move cars, motorcycles, documents, electronics, medicines, and other valuables to higher ground before water reaches the driveway. If your home has a raised floor, place important items upstairs or on sturdy shelves. Secure outdoor furniture, signs, tools, and loose roofing materials so wind and runoff don’t carry them into canals or drains.

Charge phones and prepare flashlights, spare batteries, drinking water, and essential medicines. Keep phones in waterproof bags, and save local emergency contacts before the storm. Follow official evacuation instructions, even if water has not entered your home yet.

Before the rain becomes intense, check on older adults, people with disabilities, residents living alone, and neighbors who may need help with transport. Help them move essentials early, rather than waiting for roads to flood. Report blocked channels, damaged barriers, fallen trees, or exposed electrical equipment through local emergency channels.

Mistakes That Make Street Flooding Worse

Dumping garbage, soil, or construction materials beside a drain can create a blockage within minutes. Parked vehicles can also cover grates, narrow access roads, and stop crews from reaching pump intakes, canals, or flooded homes. Keep driveways and canal edges clear when storms are expected.

Don’t wait until water enters the house before moving valuables or checking evacuation routes. Also, avoid walking or driving through moving floodwater. The National Weather Service warns that six inches of moving water can knock a person down, while submerged roads may hide open drains, debris, or washed-out surfaces. Follow Ready.gov flood safety guidance, including the instruction to turn around rather than drive through floodwater.

A nearby canal can look calm while the current below the surface remains strong. Never touch wet outlets, appliances, pumps, or electrical panels while standing in water. Leave electrical inspections and power restoration to qualified professionals, and follow local evacuation and emergency instructions without delay.

Frequently Asked Questions

Chiang Rai’s flood defenses can reduce damage, but they depend on rainfall, river levels, clear drainage routes, working equipment, and fast coordination. These answers clarify what pumps and canals can, and cannot, do during severe weather.

Can pumps prevent all flooding in Chiang Rai?

No. Pumps reduce water depth and shorten the time streets remain flooded, especially in low-lying areas where gravity drainage is too slow. However, extreme rain can produce more runoff than the equipment can handle.

Flooding may still occur when the Kok River or another receiving waterway reaches a high level, blocked drains restrict inflow, or damaged pipes reduce capacity. Pumping also has limits when electricity fails, access roads become unsafe, or discharge routes are already full.

Where does pumped floodwater go?

Pumps move water into drainage channels, canals, or other approved discharge routes. When conditions allow, those routes carry the water toward larger waterways, such as the Ing River or Kok River.

Officials must check river levels before releasing additional water. If the receiving river is already high, rapid discharge could increase flooding downstream or cause water to back up toward the city. Research on urban pumping also shows why downstream flood effects need consideration during pump operations.

Who operates Chiang Rai’s flood-control equipment?

Chiang Rai City Municipality operates municipal equipment and coordinates local response within the city. Provincial disaster prevention officials, the Chiang Rai Provincial Administrative Organization, and irrigation agencies may provide pumps, sandbags, monitoring, technical support, or water-management assistance.

District offices and local administrative organizations also help inspect flood points, issue warnings, operate equipment, and clean drains after water recedes. During serious flooding, these teams work with the Department of Disaster Prevention and Mitigation and the Royal Irrigation Department.

Why do streets flood again after drains have been cleared?

A cleared drain can lose capacity quickly when new rain carries mud, leaves, plastic, and other debris into the system. High canal or river levels can also slow the outlet, while undersized pipes may fill faster than they can carry runoff.

Clearing one section doesn’t remove a downstream bottleneck. A collapsed pipe, narrowed canal, blocked culvert, or damaged drainage wall can still force water back onto the street.

How can residents report a blocked drain or flood risk?

Contact the Chiang Rai municipal office, district office, or local disaster-prevention office through its current official phone, social media, or messaging channel. Give the exact street, neighborhood, nearby landmark, type of blockage, and whether water is entering homes.

If officials request images, take photos only from dry, safe ground. Follow Chiang Rai flood alerts and call Thailand’s 24-hour DDPM hotline at 1784 for urgent flood risks. Never approach fast-moving water, exposed wires, unstable roads, or overflowing canals to report a problem.

Is there a published cost for Chiang Rai’s pumps and canal upgrades?

Available reporting identifies pumps, barriers, drainage work, and planned improvements, but it doesn’t provide a complete public cost breakdown. The final expense depends on pump size, installation, electricity or fuel needs, discharge pipes, barriers, land work, repairs, and ongoing maintenance.

A purchase price also excludes staff, testing, spare parts, sediment removal, and emergency transport. Therefore, one reported figure would not represent the full cost of Chiang Rai’s flood-control system.
